Verdura Internation Golf & Spa Resort - Sciacca, Sicily
DRAINFIX TWIN allows a variety of combinations
DRAINFIX TWIN is the ideal product for these requirements. Elements with drainage perforations as well as closed elements can be combined in many ways to cover a wide range of applications. This unique modular design offered clear advantages to the customer compared to an Italian competitor who offered infiltration tunnels. The competitor system did not allow the flexibility of combinations. In consequence, a comparable solution would have been significantly more costly. Site manager Nicola Altini of Castelli Re from Milan confirmed the positive experience: "DRAINFIX TWIN was very quick and easy to install."

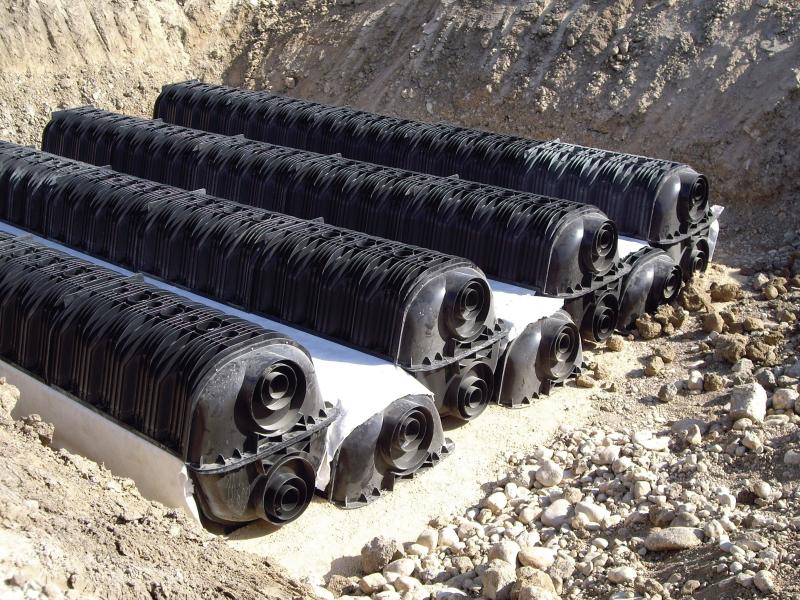

The DRAINFIX TWIN variant 0/1 with closed top shells and perforated base shells makes it possible to re-use large quantities of the excavated earth and ensures even infiltration. The system requires no gravel, which is so hard to obtain in Sicily. The wave design (see section) provides an optimum ratio of space requirement to infiltration volume and has no problem standing up to the pressure from golf carts.
Some facts and figures:
- Number of DRAINFIX TWIN 1 elements (with drainage perforation): 797 pieces
- Number of DRAINFIX TWIN 0 elements (without drainage perforation): 459 pieces
- Number of infiltration structures of different sizes: 9
- Volume of excavated earth: 1007.0 m³
- Volume of re-used earth from excavation: 676.5 m³
- Volume of all DRAINFIX TWIN infiltration structures: 330.5 m³
Final statement by Francesco Buschi of HAURATON Italia
“We were able to obtain the contract for this project owing to the following important points: The major advantage was the versatility of the product. DRAINFIX TWIN can be installed in different ways and – most importantly – without the use of gravel. This was the most convincing factor for the customer. The close cooperation between the sales and technical support team in Italy, as well as the substantial technical support from Germany, was perfect. HAURATON soon gained the trust of our customer who saw the company as a competent partner who was able to offer solutions for the most important requirements. One final point was the efficient coordination and handling by the HAURATON team, ensuring on-time transport and deliveries. For me personally, this successful operation was very satisfying and a valuable experience. We know that this project is just a first step in an expanding market. It has motivated us to accept the challenges of the future.”
