FASERFIX KS drainage channel | commercial & public areas

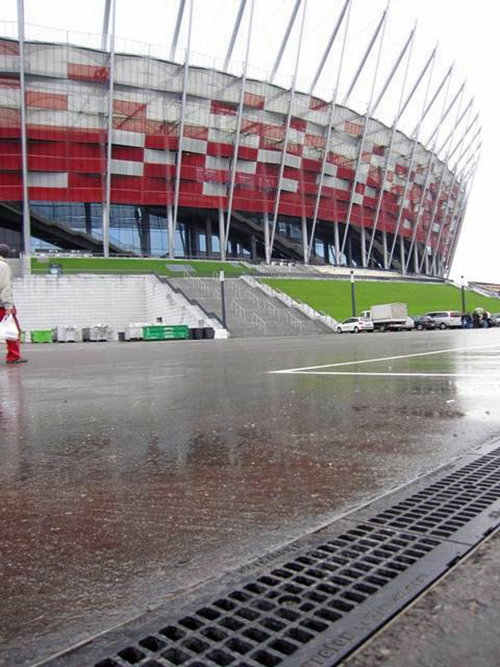

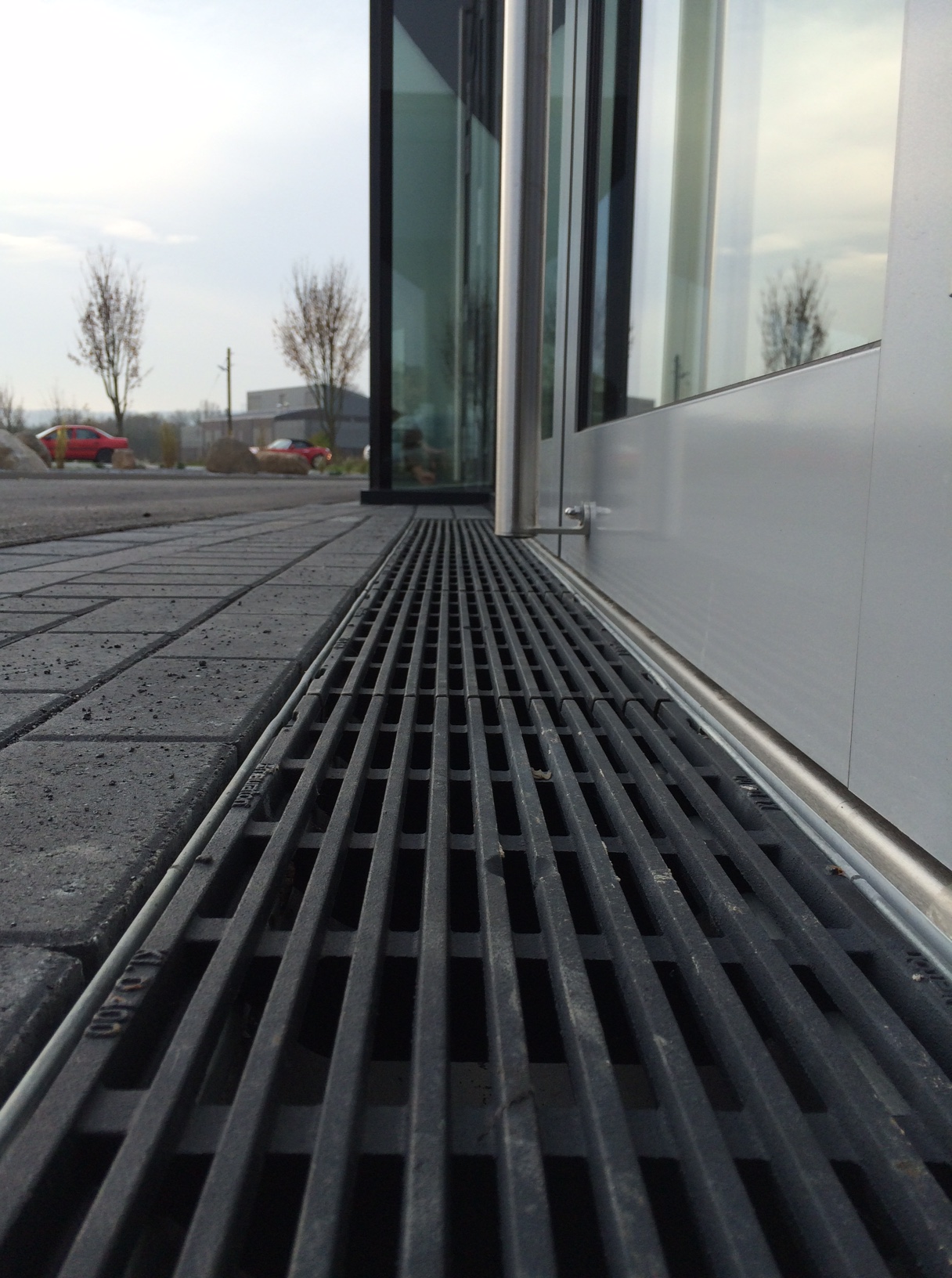

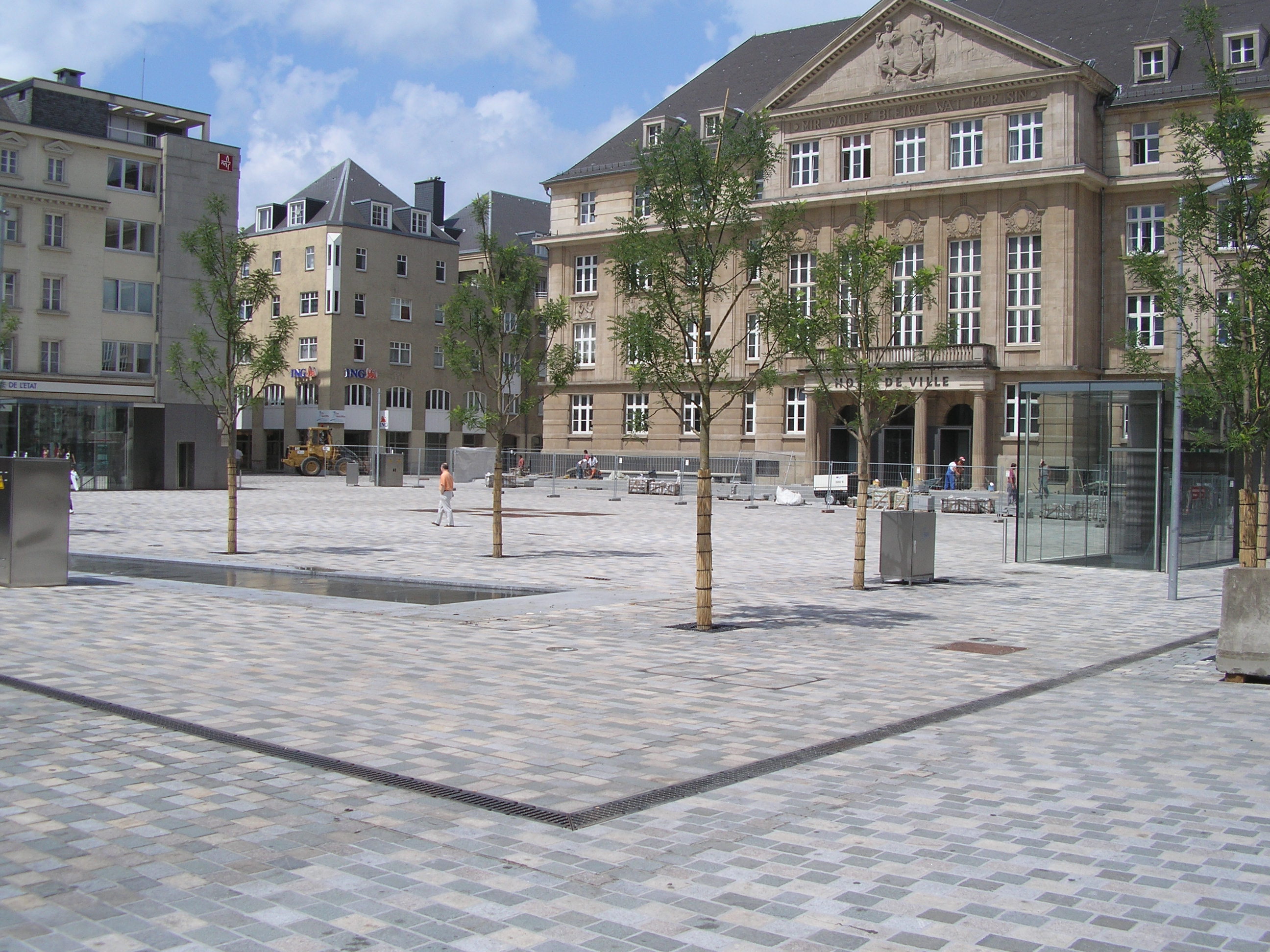

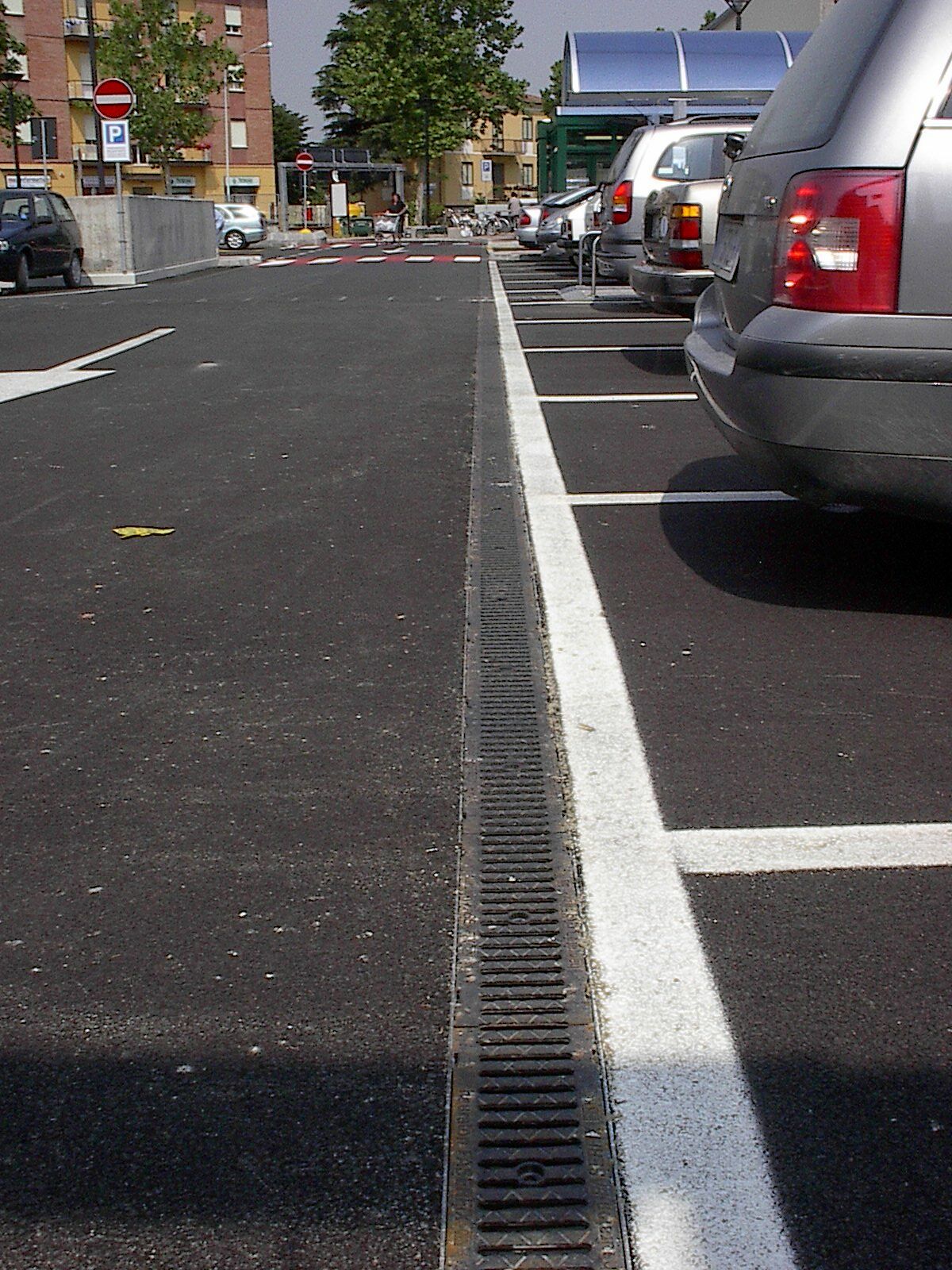

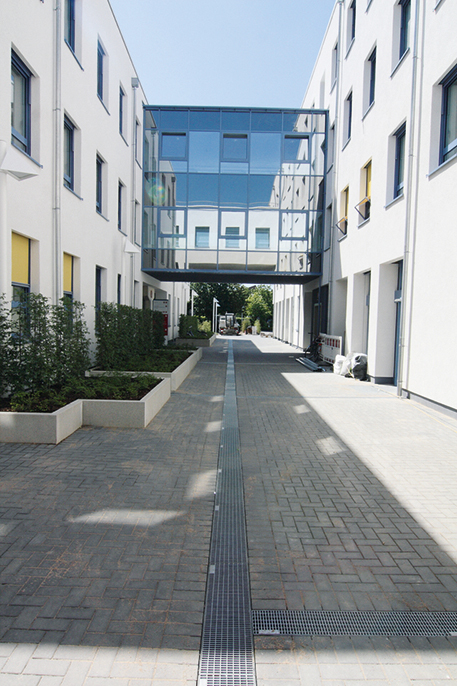

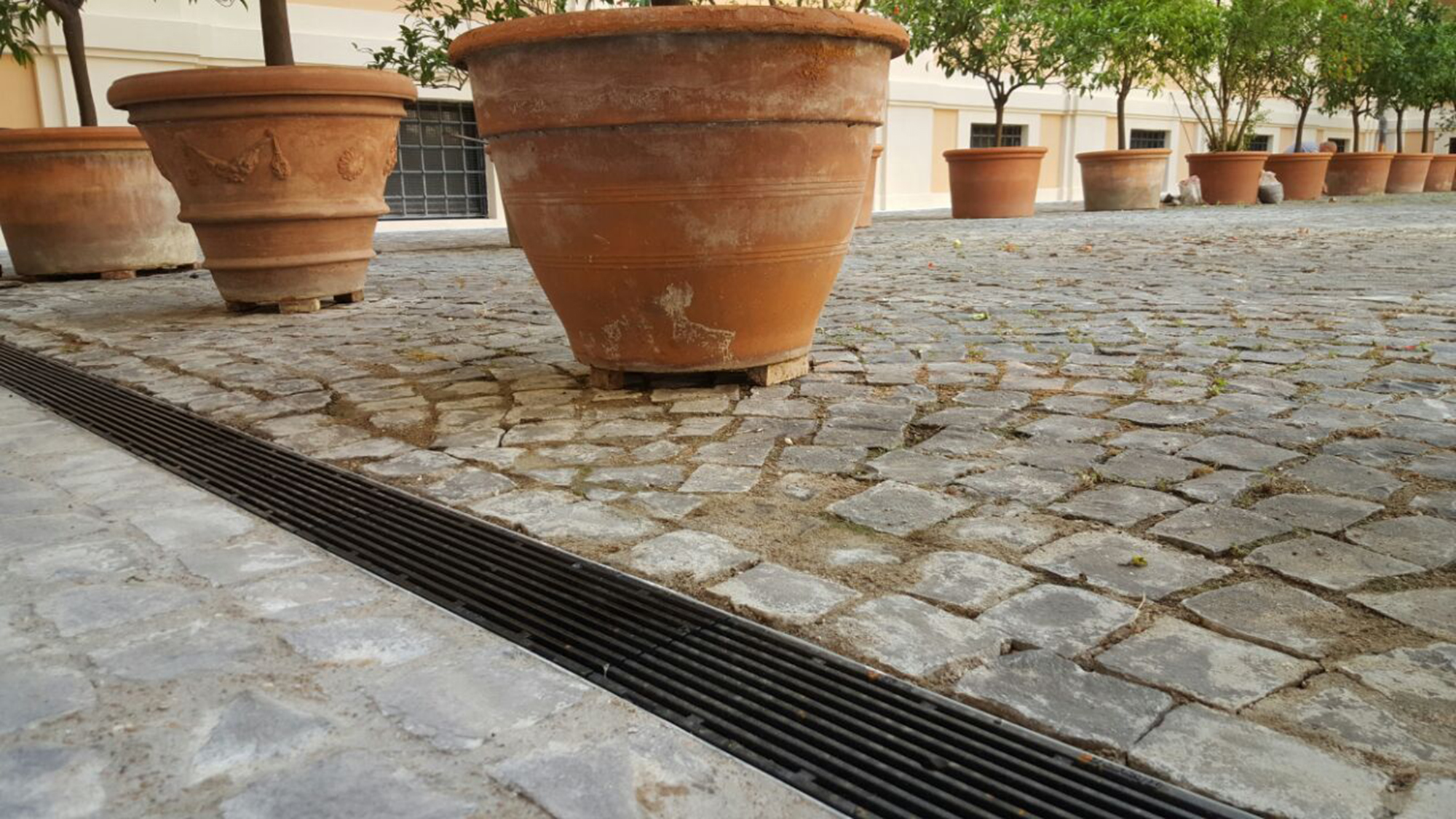

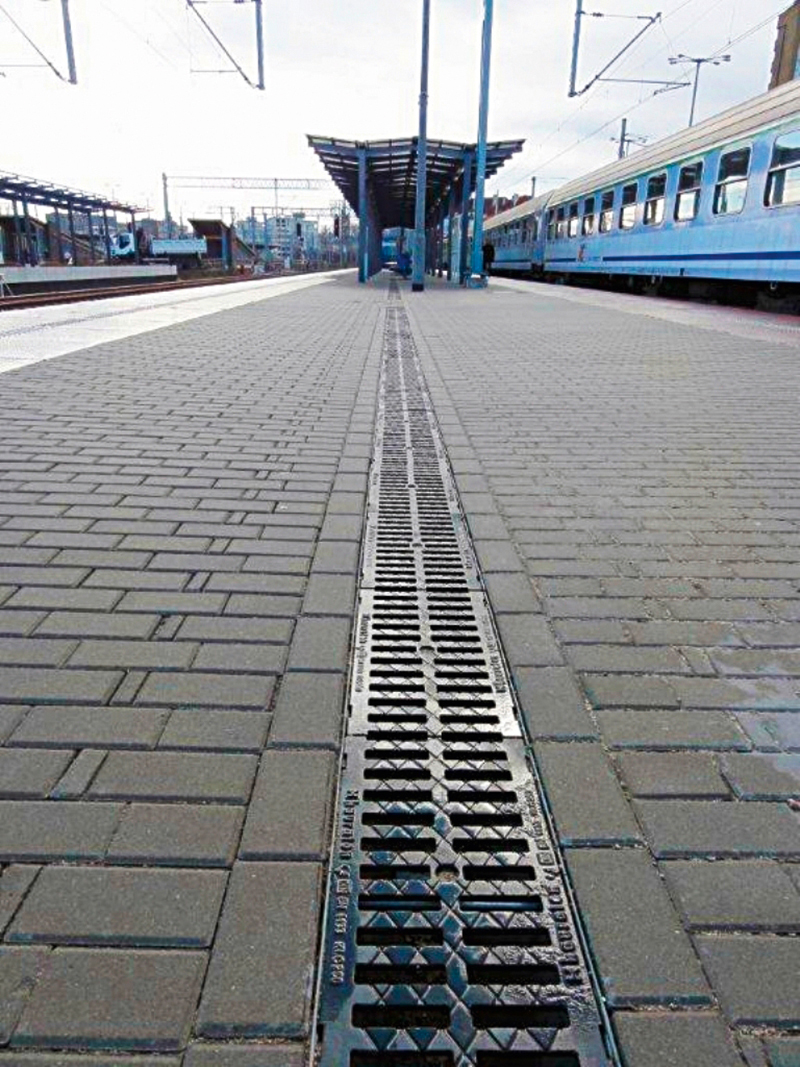

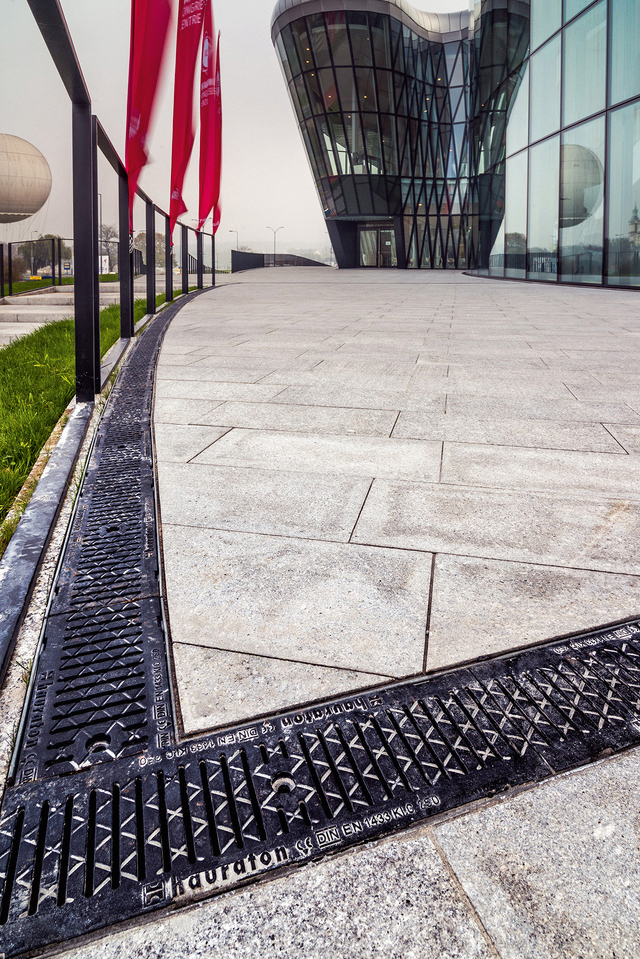

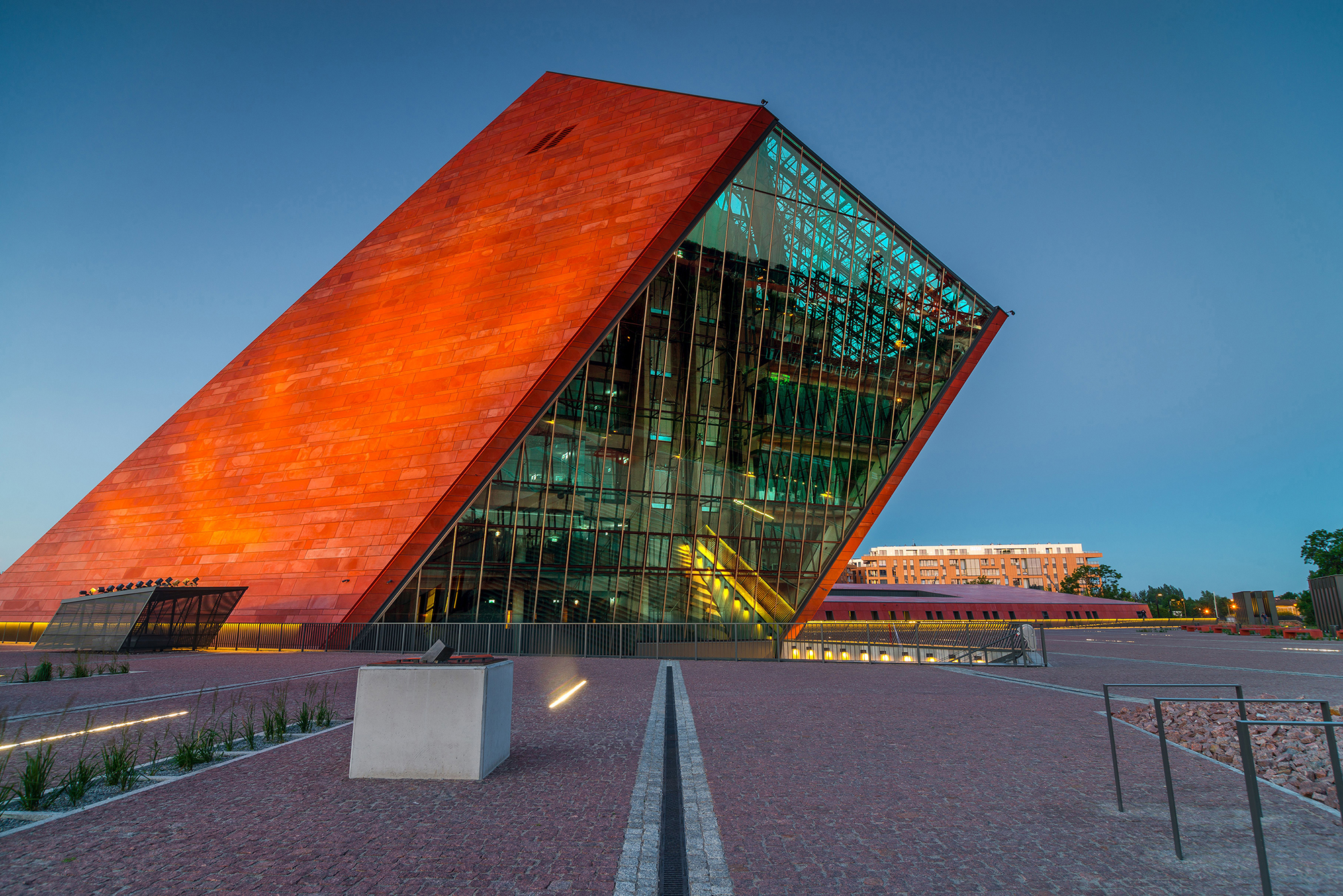

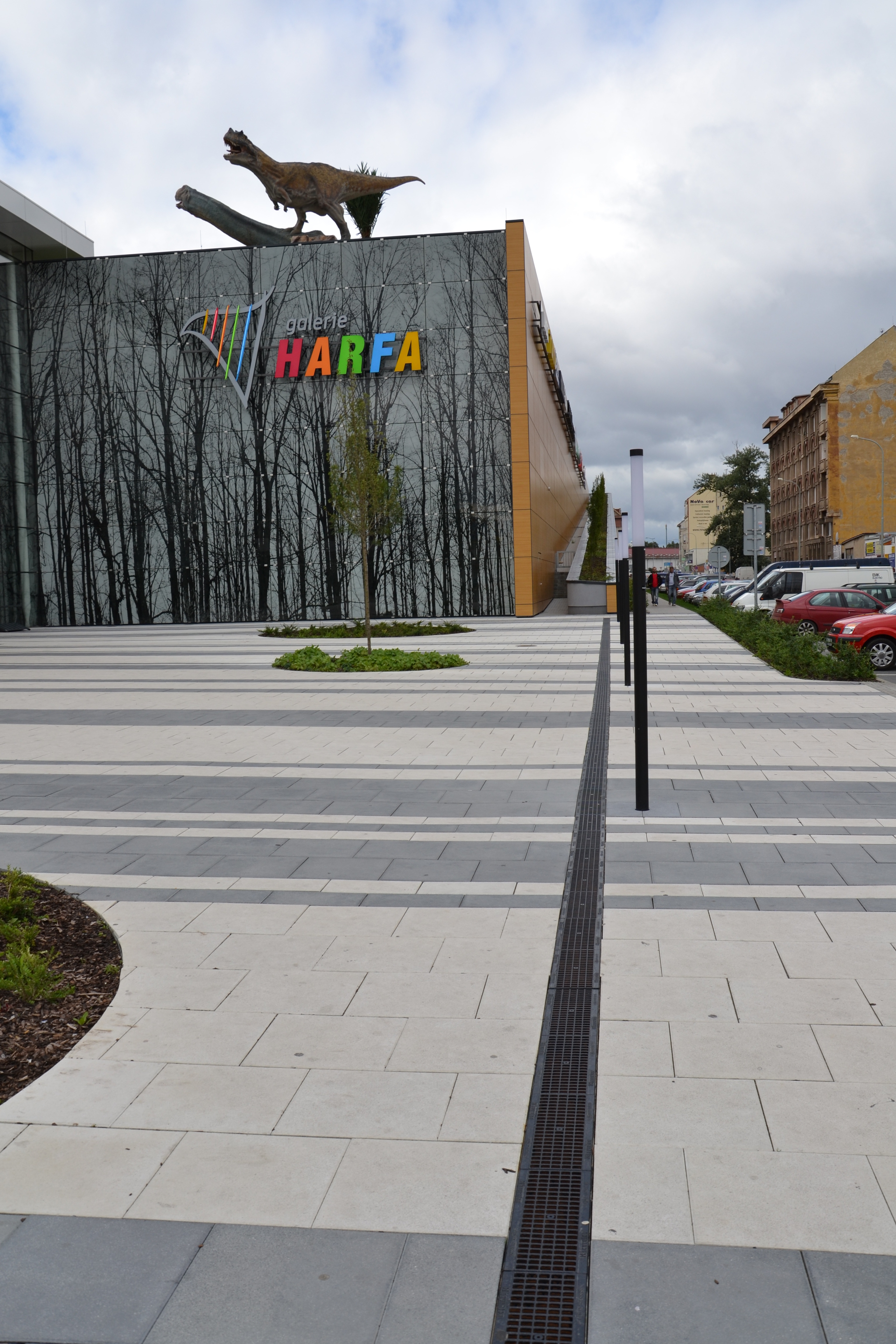

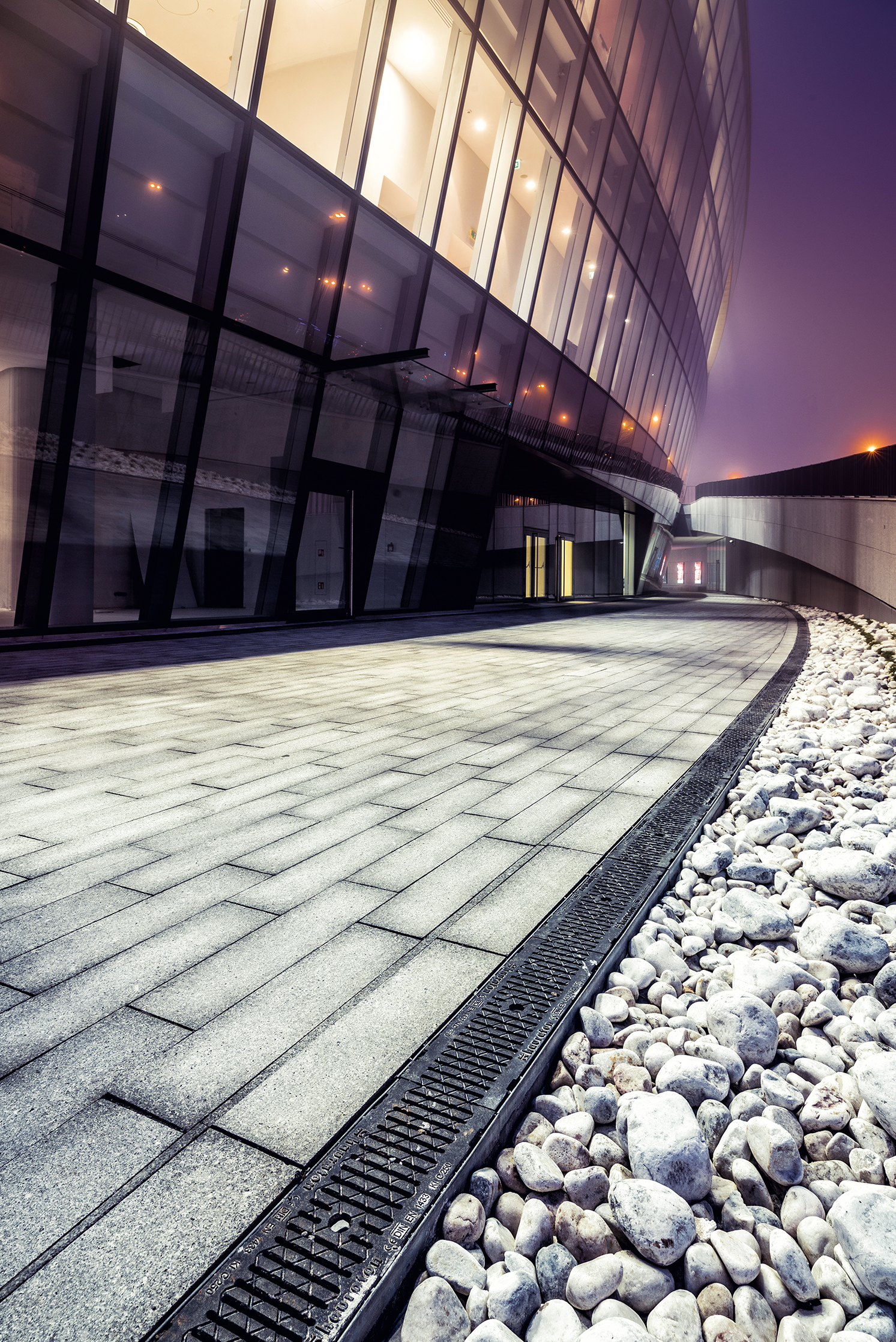

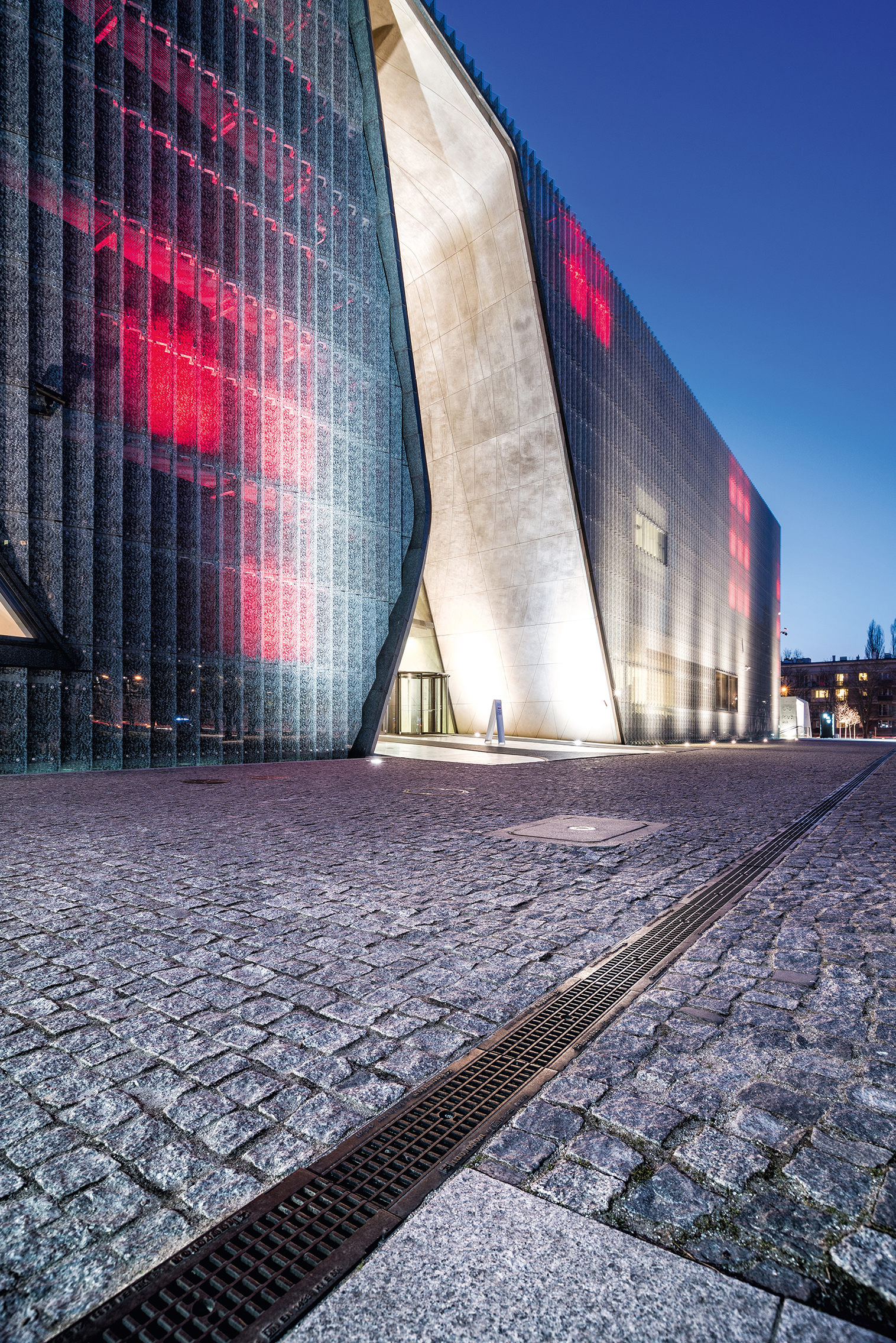

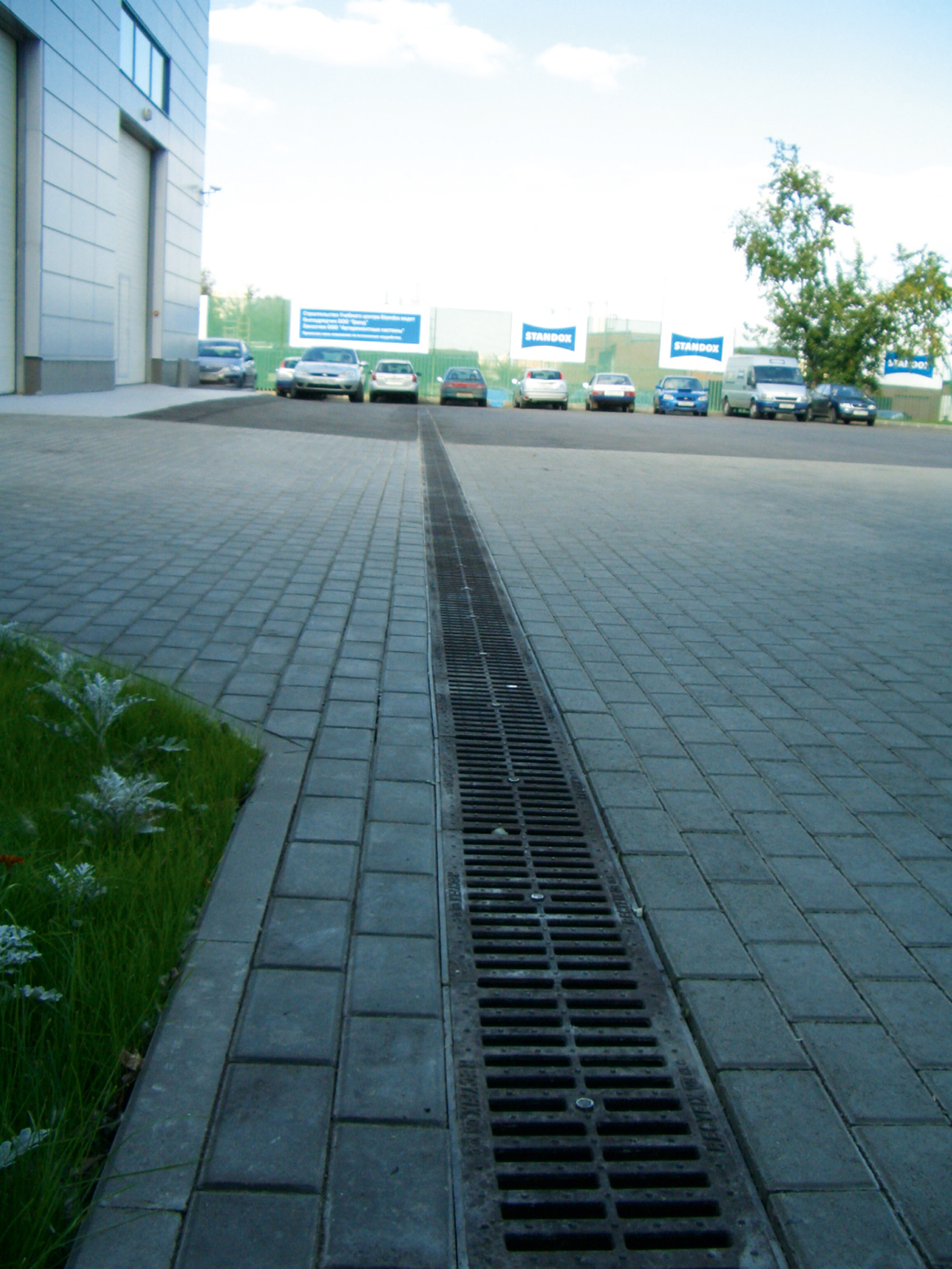

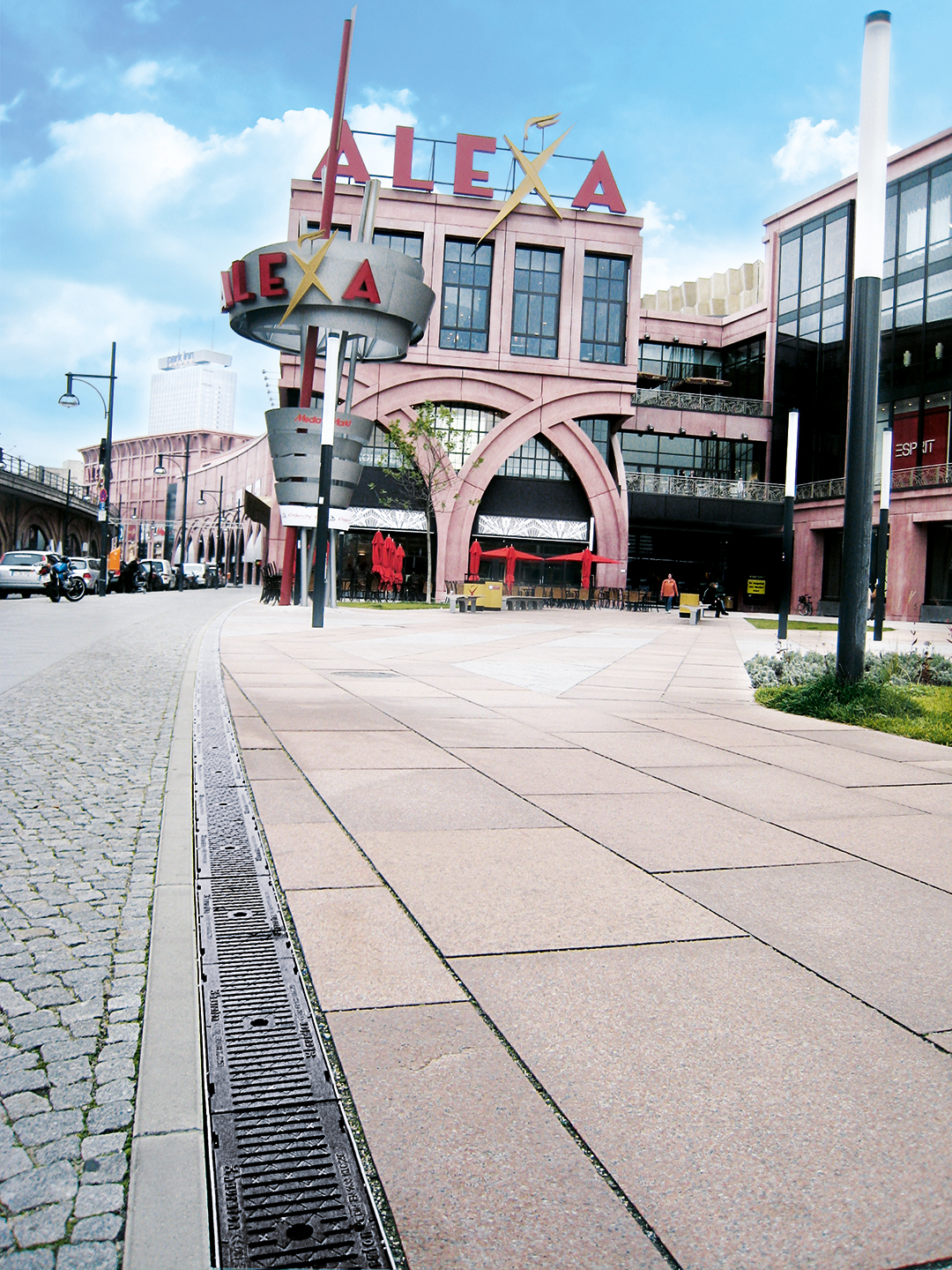

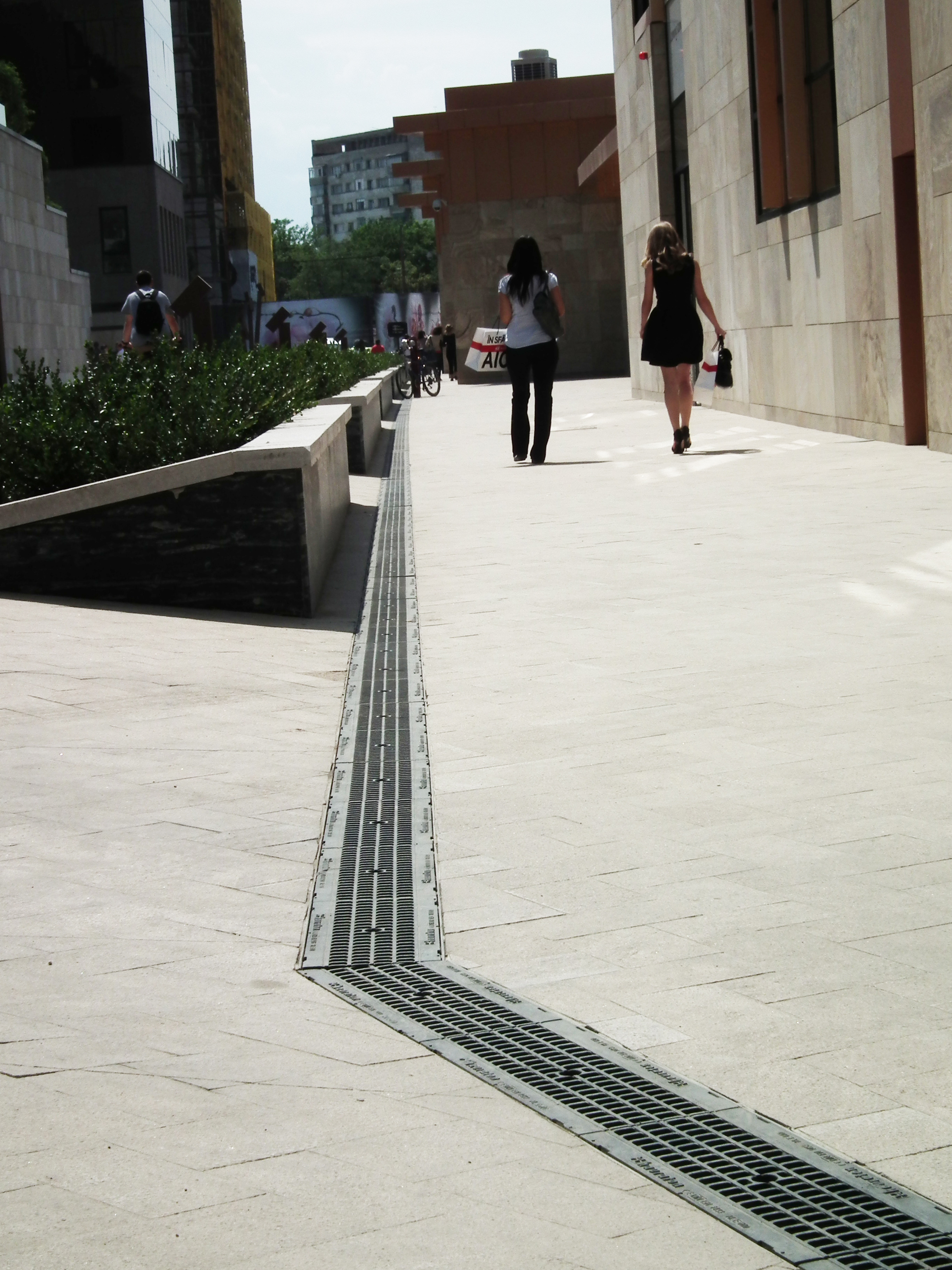

IDEAL FOR: applications with high loads up to class F 900, such as traffic areas for commercial and public areas.
YOUR BENEFITS WITH FASERFIX®KS
HIGH PERFORMANCE ANGLE HOUSING & SIDE-LOCK
- 20 mm x 20 mm angle housing and inlaying grating
- extremely stable connection between steel angle housing and concrete channel body
- 10 fixing points for gratings per metre (incl. 2 times with optional locking handle)
- extra protection against lateral movement
- 90 % time savings in fixing the grating withSIDE-LOCK (compared to a conventional fixing)
- replace and insert the grating without any special tool a screwdriver is enough
= Quality assured | Cost savings
NUMEROUS GRATING OPTIONS
- made of ductile iron , composite, galvanised or stainless steel
- narrow slot width for pedestrian areas available
= Design Flexibility
HIGH STABILITY
- maximum lateral stability through extra thick walls compared to many competitors‘ products for additional security in extreme situations

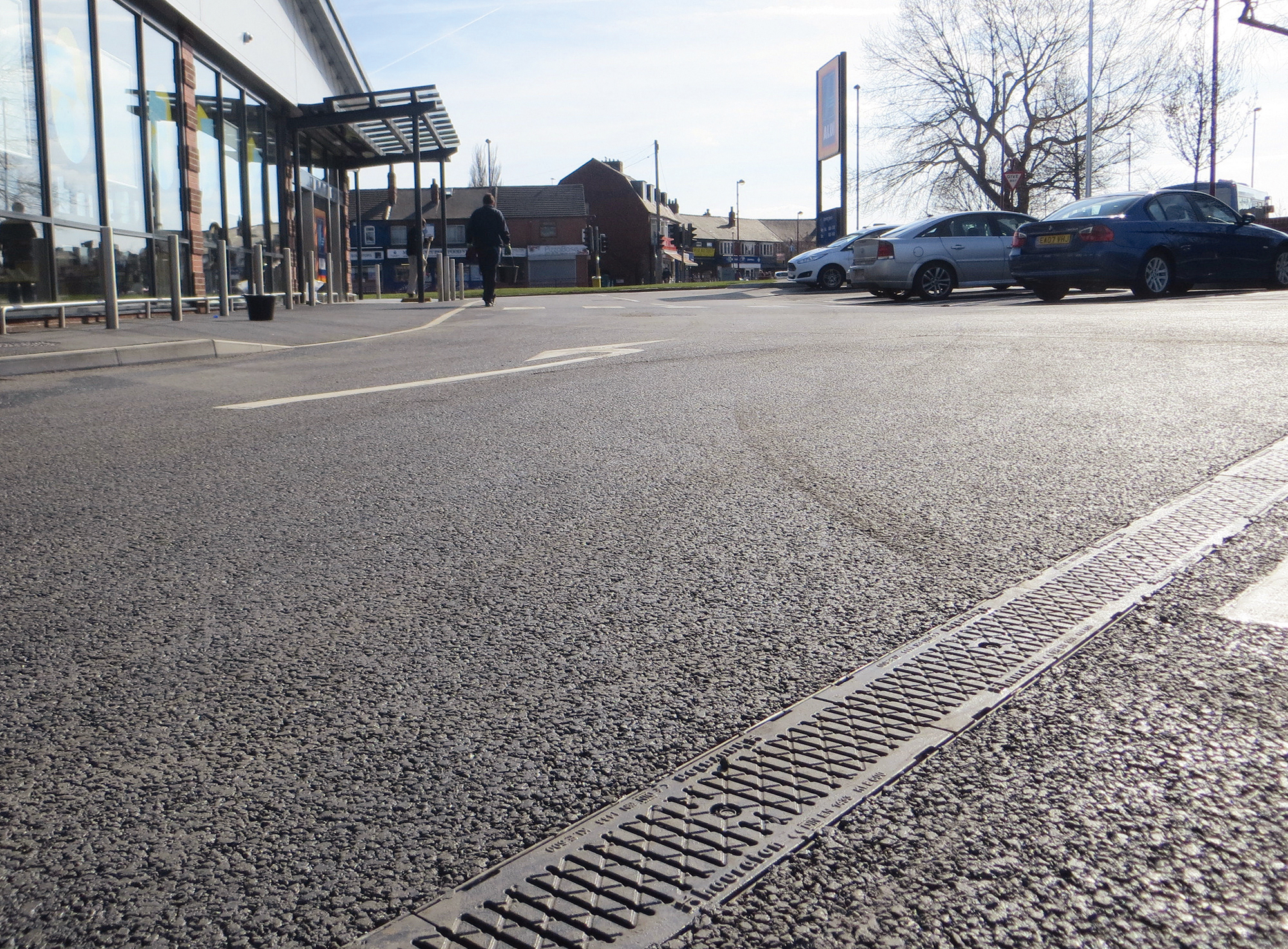

- installation for asphalted surface up to class E 600 without concrete stretcher
= Quality assured | Performance assured
HIGH-TECH MATERIAL
- „Made in Germany“
- maximum stability through fibre - reinforced concrete (polypropylene fibres) with low weight
- adheres well to foundation concrete (same coefficient with regard to thermal expansion)
- installation without grating possible
- fire resistance class A1 (not flammable) according to DIN 4102
= Quality assured | Performance assured

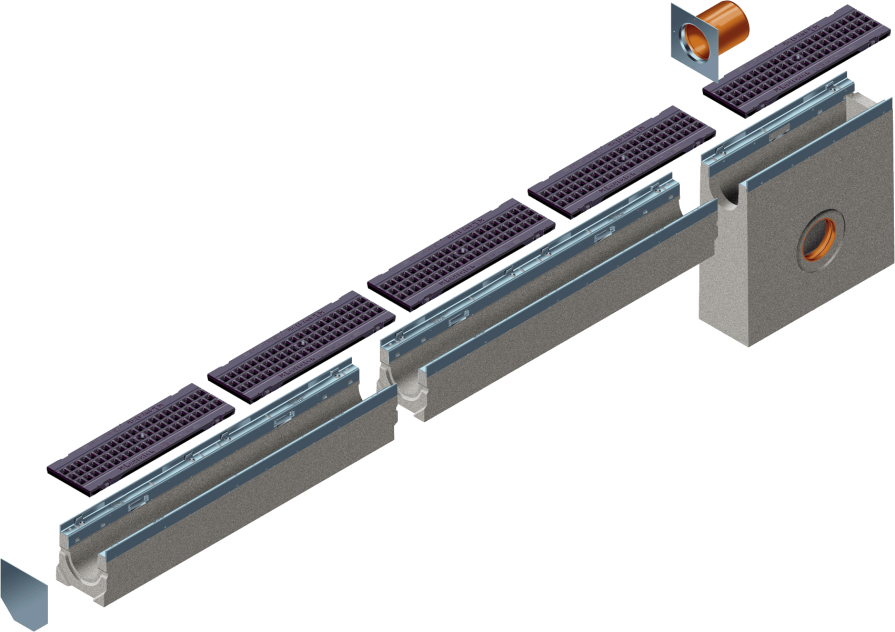

THE SYSTEM IN DETAIL

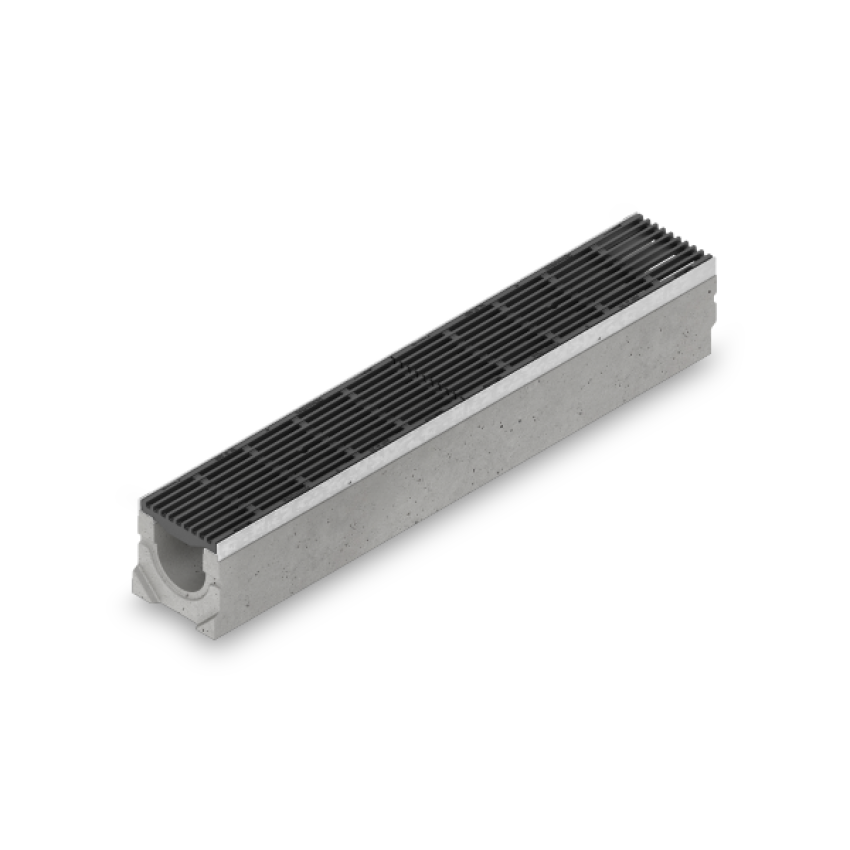

Channels made of fibre reinforced concrete, according DIN V 19580 / EN 1433, CE-conform with safety joint, steel angle housings and boltless locking system SIDE-LOCK with groove and tongue connection for exact installation
numerous grating options, for example GUGI-Ductile iron mesh gratings
Trash box with 3-sided pipe connection possibilities, integrated PVC-U socket DN/OD 110 with removable mud bucket
End caps with outlet
End caps without outlet
